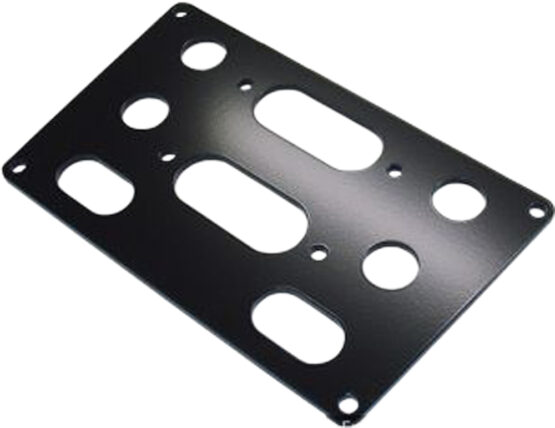

Winch Mount

Description

• Constructed of 1/4″ steel
• Metal bead blasted and powder coated for best possible finish prep and durability
• Very easy to install
• Complete installation instructions and mounting hardware included
• 100% made in USA
• Roller fairlead and winch not included.
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50 (requires purchase of #4505-0952)
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2500 / PE3500
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND, CHAMPION: 2-hole winches and standard winches (all 2-hole mounted winches require additional purchase of Converter Mount #4505-1069)
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-hole standard (3.00″ x 4.875″ bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (standard ONLY) 4-hole standard 3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern
• QUADBOSS: RP25 / RP35
• 2-HOLE MOUNTED WINCHES WITH A 3.10″ BOLT PATTERN: all 2-hole mounted winches will require the additional purchase of the Converter Mount #4505-1069 and roller fairlead with a 4.875″ bolt pattern; available if needed #4505-0953
• Possibly many other standard mounting pattern with 4-hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)

100635 made by KFI
