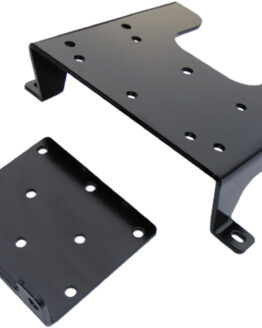

Winch Mount

Description

• Constructed of 1/4” steel
• Metal bead blasted and powder coated for best possible finish prep and durability
• Complete installation instructions and mounting hardware included
• 100% made in USA
• Roller fairlead and winch not included.
• Requires Fairlead Bracket #4505-1073 with some Warn winches.
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45-R2w / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / AXON 35 / AXON 35-S / AXON 45RC require standard fairlead bracket #4505-1086
• WARN: VRX 45 / VRX 45-S / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S require wide fairlead bracket #4505-1073
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-4000 lb / Provantage 2500-4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT requires roller fairlead with a 4.875″ bolt pattern
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND 2-hole winches: 68146 / 61258 / 61297 / 61840
• BADLAND standard winches: 68145 / 61604 / 61257 / 61383
• BADLAND WIDE winches: 61384 / 68144 / 61605
• CHAMPION 2-hole winches: 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
• CHAMPION standard winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
• CHAMPION WIDE winches: 14008 / 14501 / 14551 / 14552 / 40252
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000 requires roller fairlead with a 4.875″ bolt pattern
• SMITTYBILT: XRC 2.0 requires roller fairlead with a 4.875″ bolt pattern
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-hole standard (3.00″ x 4.875″ bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00″ x 4.875″ or 3.00″ x 6.600″ bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1078302 require roller fairlead with a 4.875″ bolt pattern
• QUADBOSS: RP25 / RP35
• Possibly many others with standard mounting pattern of 4-hole 3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern, 4-hole wide 3.00″ x 6.60″ bolt pattern, or 2-hole 3.10” with rollers that are 4.875” bolt pattern

Shot-blasted before they are powder-coated for the best possible finish prep. Constructed of grade 50 steel and powder-coated black for supreme durability.

Easy to install. Includes complete installation instructions and hardware. Made in USA.
100845 made by KFI
